Condensar

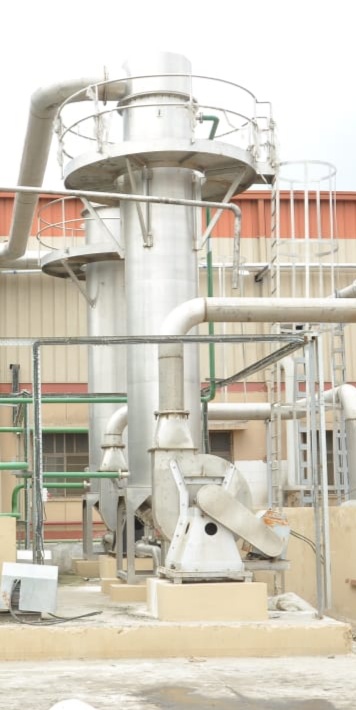

Being a leader in the industry, we are engaged in offering a qualitative range of SS & MS Condenser to our customers.

1.       Stub End required for top cover at both flange. ( both Ducting flange and main flange )

2.       Matching flange to be supplied for all the flange even water line also.

3.       Condenser flanges hole size should be 20 mm.(bolt to be supply 16 mm).

4.       Suction nozzle of size 200 mm diameter X 300 mm length for vapour fan to be fixed on condenser with matching flange and stub end.

5.       Foundation plate size should be 300 mm X 300 mm X 10 mm thick with 4 nos. holes.

6.       Condenser bottom legs should be SS 304 Box Section 100 mm X 100 mm X 10 mm Thick.

7.       Condenser foundation plate to be fixed on condenser during fabrication.

8.       Drain socket of 50 NB with Dummy plug to be provided at the bottom of condenser.
