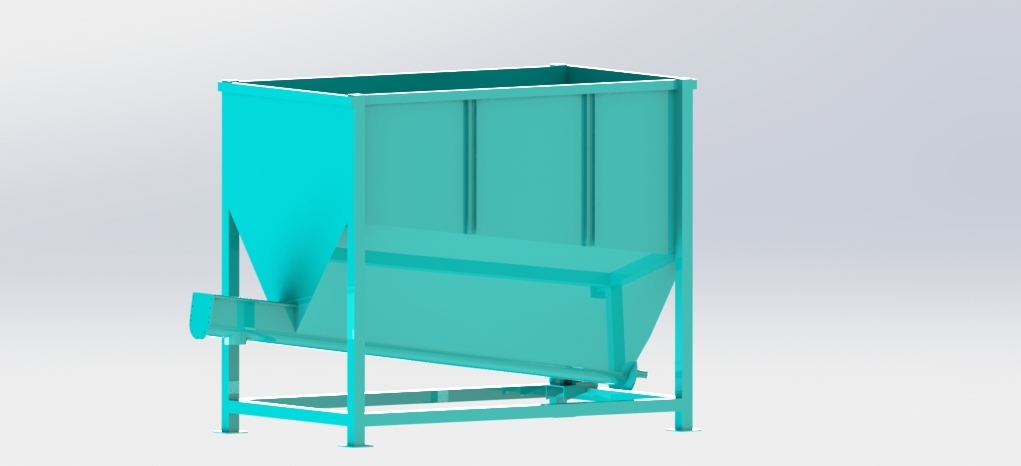

Percolating Bin

Raw material Bin of 600mm; Dia. 600 mm pitch with 12mm flight thickness. Bin will be driven at 6 rpm by 5.5 kW Siemens motor with Gear box Bonfiglioli make with Drive guard Duplex chain and sprocket of Diamond make and proper gland sealing arrangement is provided at shaft with heavy duty Housing & Bearing (SKF) block of reputed make.

Technical Specification:

Volume:                                              30m3

Silo Material:                                     Carbon Steel

Number of Screw:                          1 Set

Screw Diameter:                             1600mm

Screw Material:                               Mild Steel

Direct transmission by means of gearbox

Heated bottom bin with steam jacket designed for 1 bar steam pressure.
